Precision
Crimping
Solutions
India's most trusted wire crimping machinery manufacturer. Supplying precision applicators, semi-automatic presses, and custom tooling to 30+ global brands across automotive, aerospace & electronics.
Engineered For Precision Since 2007
At Aakash Crimping Machinery, we specialize in high-quality wire crimping manufacturing solutions for automotive, aerospace, electronics, and industrial sectors. Founded as Crimpwell-India in 2007, we have evolved into a globally recognized precision manufacturer.
Our state-of-the-art facility in Noida is equipped with CNC Wire Cut EDM, Surface Grinders, Vision Measuring Machines, and Crimp Cross-Section Analysis Labs — giving us the precision tools to deliver world-class products at every tolerance level.
Deliver exceptional manufacturing with quality, reliability, and innovation while continuously improving processes sustainably.
Become a global leader in crimping manufacturing through innovation, sustainability, and world-class engineering excellence.
Precision Crimping Machinery
From high-speed crimping applicators to semi-automatic presses — engineered for consistency, durability, and performance in demanding production environments.

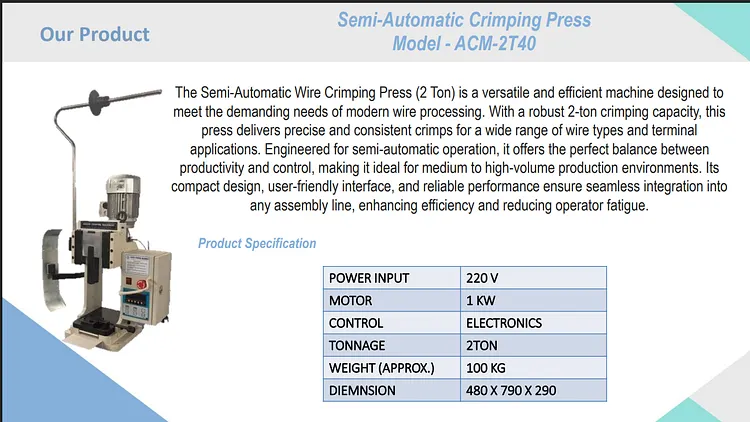

Semi-Automatic
Crimping Press (2 Ton)
A versatile and efficient machine designed for modern wire processing. Delivers precise and consistent crimps for a wide range of wire types and terminal applications. Ideal for medium to high-volume production environments.
| Power Input | 220 V |
| Motor | 1 KW |
| Control | Electronics |
| Tonnage | 2 TON |
| Weight (Approx.) | 100 KG |
| Dimension | 480 × 790 × 290 mm |
Crimping Applicator
Side Feed
Side feed applicator slides the terminal chain where the chain consists of terminals side by side. Engineered for high-volume automotive wire harness production with precise height adjustment.
| Dimension (mm) | 203.0 × 135.8 × 69.0 |
| Weight | 4.5 KG ± 100 GM |
| Feeding Style | Side Feed |
| Mechanism | Mechanical |
| Dial Type | Spiral (1.20 MM) |
| Height Adjustment | 40 µm |
Crimping Applicator
End Feed
End feed applicator slides the terminal chain where terminals are arranged end to end. Designed for optimal terminal feeding accuracy and consistent crimp height performance.
| Dimension (mm) | 72.0 × 135.8 × 225.0 |
| Weight | 4.5 KG ± 100 GM |
| Feeding Style | End Feed |
| Mechanism | Mechanical |
| Dial Type | Spiral (1.20 MM) |
| Height Adjustment | 40 µm |
Crimping Applicator
Joint
A variant of the side feed applicator where the chain consists of Joint terminals arranged end to end. Engineered for specialty joint terminal crimping requirements in complex harness applications.
| Dimension (mm) | 203.0 × 135.8 × 69.0 |
| Weight | 4.5 KG ± 100 GM |
| Feeding Style | Side Feed (Joint) |
| Mechanism | Mechanical |
| Dial Type | Spiral (1.20 MM) |
| Height Adjustment | 40 µm |
Crimping Applicator
Loose
Used to crimp terminals that are available without chain. Ideal for specialized applications requiring individual terminal processing with precise crimp height control at the micron level.
| Dimension (mm) | 75.0 × 135.8 × 98.0 |
| Weight | 3.0 KG ± 100 GM |
| Feeding Style | Loose |
| Mechanism | Mechanical |
| Dial Type | Spiral (1.20 MM) |
| Height Adjustment | 40 µm |
Crimping Applicator
Flag
A variant of end feed applicator where the chain consists of Flag type terminals arranged end to end. Features pneumatic mechanism for faster cycle times in high-volume flag terminal applications.
| Dimension (mm) | 88.0 × 135.8 × 250.0 |
| Weight | 6.2 KG ± 100 GM |
| Feeding Style | End Feed (Flag) |
| Mechanism | Pneumatic |
| Dial Type | Spiral (1.20 MM) |
| Height Adjustment | 40 µm |
Crimper & Anvil Sets · Custom Precision Parts
All tooling machined in-house with CNC Wire Cut EDM at ±10 micron tolerance. Custom designs available for any terminal type or applicator brand.
Built For Global Standards
Our 5,000 sq. ft. facility houses precision machinery from world-class manufacturers — enabling us to hold tolerances down to 10 microns and deliver consistently world-standard products.
Our Engineering Arsenal
CNC Wire Cut EDM
- ModelsD-Zire + RW7735
- Table400×300mm / 350×450mm
- Tolerance10 Micron
- Surface Finish0.6 µRa

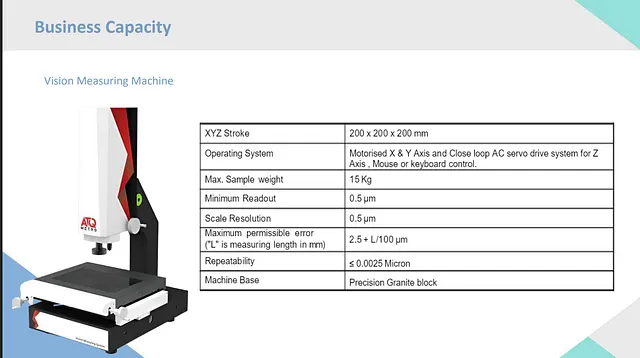

Vision Measuring Machine
- XYZ Stroke200×200×200mm
- Min. Readout0.5 µm
- Repeatability≤0.0025 Micron
- Machine BaseGranite Block
Surface Grinder
- Working Surface225×350mm
- Vertical Feed0.01mm Grad.
- Cross Feed0.05mm Grad.

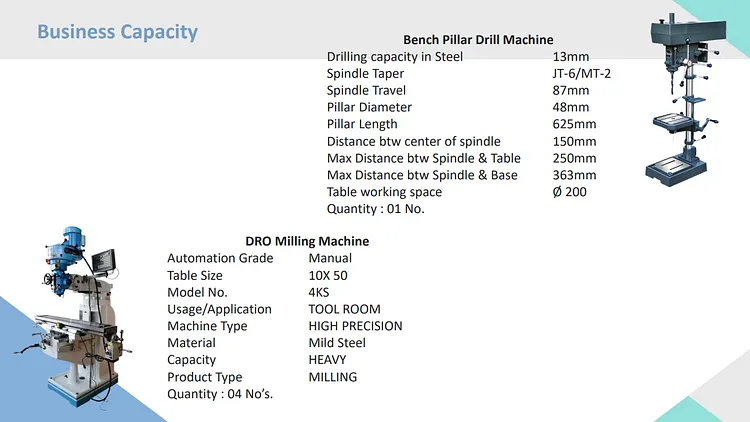

DRO Milling Machine
- Table Size10×50
- Model4KS Tool Room
- TypeHigh Precision

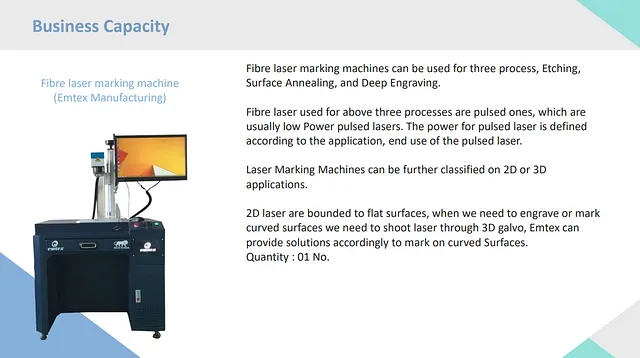

Fibre Laser Marking
- BrandEmtex Manufacturing
- ProcessesEtching / Engraving
- Capability2D + 3D Applications
Crimping Press Bank
- Capacity2 Ton + 4 Ton
- PurposeJAM, SAI, JYP Testing
- BrandsUnion, Mecal, CIC
17 Years of Engineering Excellence
Trusted By Industry Leaders
From global automotive giants to aerospace specialists — our precision crimping solutions power the world's most demanding wire processing operations.
Zero Compromise On Quality
Every product undergoes rigorous inspection through our Crimp Cross-Section Analysis Lab and Vision Measuring System. Our ISO 9001:2015 certified processes ensure consistent quality at every production run.

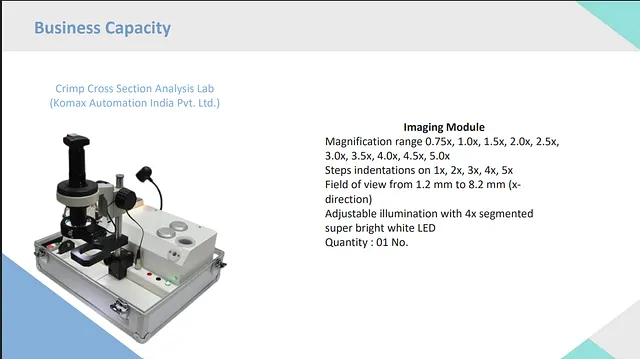

Crimp Cross-Section Analysis
Komax Automation India Pvt. Ltd. analysis lab for complete crimp quality verification and certification.
Vision Measuring System
0.5µm minimum readout with ≤0.0025 Micron repeatability on granite base for absolute dimensional accuracy.

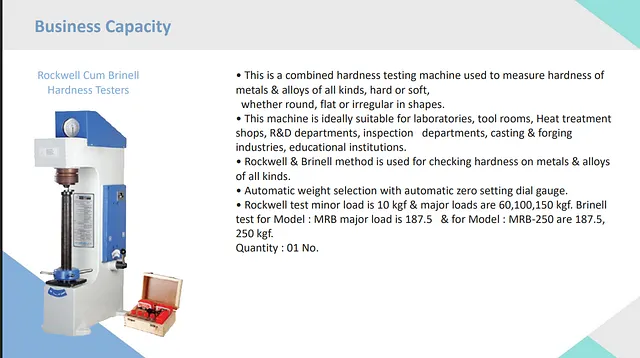

Hardness Testing
Rockwell + Brinell combined hardness testing for all metals and alloys, ensuring material specification compliance.
In-Process Inspection
Every applicator tested on production crimping presses before dispatch. Zero-defect delivery policy.
Start Your Inquiry Today
Whether you need a standard applicator, custom tooling, or a complete crimping press solution — our team responds within 2 hours on WhatsApp.
Gautam Buddh Nagar, Uttar Pradesh – India
